engineering plastic ground mats,construction track road mat,protection ground mats
engineering plastic ground mats,construction track road mat,protection ground mats
Item Description

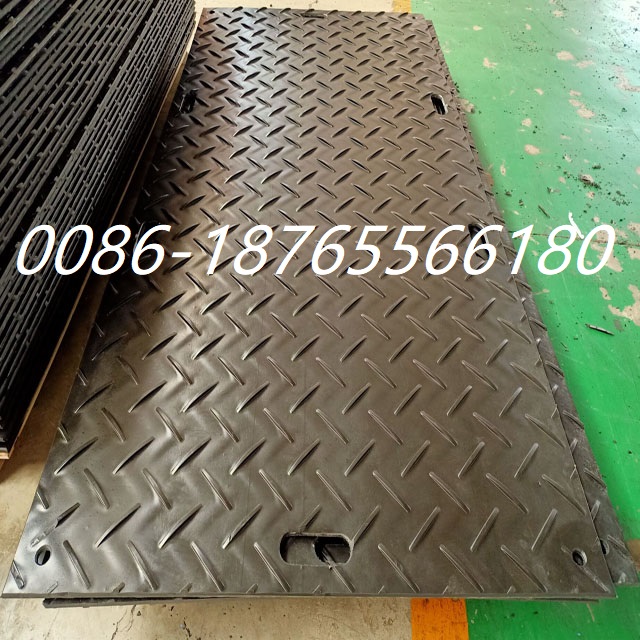

Plastic Ground Protection Track Mats 1200 x 2400mm
is designed to preserve soft and sensitive ground conditions for machinery and vehicles, which are reusable for many times and 100% recyclable after use. It is an ideal alternative of the highly expensive aluminum protection systems or the "rot and replace" culture of timber for ground protection.
Ground protection mat provide the best value, and the most effective, heave duty ground cover available. They are being increasingly used by ground engineering companies, as well as many outdoor events companies and landscaping contractors. It can cushion the wheel in the sand, mud swamps, snow, ground mat play a role in increasing friction.
XINXING ground protection mats providing the following solutions: Temporary trackways, Temporary carparks, Access routes, Haul roads, Pedestrian access, Trench Covers, Tree Root Protection,and Grass reinforcement, Gravel reinforcement, Porous paving, Grass reinforcement mesh, Available for sale or hire worldwide, XINXING ground protection mat saves the costly installation of temporary stone roads, and reinstatement costs as a result of damaged ground. Our technical team can give you helpful advice and a written quotation for any enquiry. We believe in simple, honest, on-time and quality service!
a. The standard size of Plastic Ground Protection Track Mats 1200 x 2400mm
Size (mm)
|
Thickness(mm)
|
Weight (kg)
|
610x1220
|
12.7
|
10
|
610x1830
|
12.7
|
15
|
610x2440
|
12.7
|
20
|
910x1830
|
12.7
|
15
|
910x2440
|
12.7
|
30
|
1000x2440
|
12.7
|
33
|
1000x2900
|
12.7
|
39
|
1100x2440
|
12.7
|
36
|
1100x2900
|
12.7
|
43
|
1220x2440
|
12.7
|
40
|
1220x2900
|
12.7
|
47.5
|
Size available
1220*2440mm(4’*8’)
910*2440mm(3’*8’)
610*2440mm(2’*8’)
910*1830mm(3’*6’)
610*1830mm(2’*6’)
610*1220mm(2’*4’)
1200*2400mm
1100*2440mm
1100*2900mm
1000*2440mm
1000*2900mm
- Thickness: 12.7mm,15mm, 18mm, 20mm
- Cleat height: 5mm
- Color: Black/Dark Green (other colors available)
Pattern both sides OR smooth on one side.
Various sizes and thickness can be offered to suit your need.
Application of Plastic Ground Protection Track Mats 1200 x 2400mm
Rig mats, road mats, access roads, leases, pipeline crossings, creek crossings, staging areas, camps, tank farms, under drilling/completion rigs, environmentally sensitive applications, sensitive land owners, pipeline construction, muskeg, remote helicopter pads, emergency egress, accessing spills for environmental cleanup, transmission line construction, wind farm construction, bridge decks, blasting mats
b.Characters of Plastic Ground Protection Track Mats 1200 x 2400mm
- Very flat on the surface
- The thickness tolerance is +2-0, some made according to your requirement.
- The standard color is white(natural), black, blue, green, red, yellow, orange, and it can be done according to you.
- An accurate size of UHMW-PE sheet with advanced machine.
- Different shaped UHMW-PE Sheets also can be supplied by XINXING like bending sheet.
- According to different requirements with different application, special specification can be customized, like anti-UV, fire-resistant, anti-static and other characters.
c. Key properties of Plastic Ground Protection Track Mats 1200 x 2400mm
- Extremely high impact strength
- Excellent wear and abrasion resistance
- Optimal sliding properties
- Dimensional stability
- Energy absorption capacity at high loading rates
- Resistance against fatigue
- Water repellent
- Good chemical resistance
- Excellent electrical and dielectric properties
- Physiologically harmless
Ground protection mat Traction Surface
Double - traction treated design includes two parallel traction treads positioned at a 90-degree angle to adjacent double traction tread sets
Ground protection mat Thickness
12.7mm sheet + 5mm cleat + 5mm cleat = 22.7mm total 15mm sheet + 5mm cleat + 5mm cleat = 25mm total
Ground protection mat Weight Loading
Varies, depending on sub-surface, up to 80 tons capacity
Ground Surface
XINXING ground protection sheet both protect your expensive turf and provide access and traction over mud , sand ,snow and other difficult surfaces . XINXING ground protection sheet can be used to create temporary roadways for all types of vehicles and equipment or large work pads for drilling , administrative compounds ,bone yards , temporary flooring , oil drilling rig mats and other industrial application .
Ground protection mat Benefits:
1.Creat an instant roadway over virtually any type of terrain mud, sand, marshy, uneven or soft terrain
2. Protects valuable turf during landscaping projects
3. Superior alternative to plywood and fiberglass will not warp, rot, crack or delaminate
4.Save time & labor getting vehicles and equipment traversed over difficult terrain
5.Avoid potential injuries to workers incurred while dislodging vehicles & equipment from mud
6.Protects vehicles & equipment from excessive wear and damage due to operating on unstable ground conditions
7.Easily handled and laid by two men no need for expensive crane wagons
8.Lay as two parallel tracks or a single roadway
9.Link together with metal connectors.
10. Easily cleaned due to less aggressive lug pattern
11.Extremely durable to withstand vehicle weights up to 80 tons
12.Tested in extremes of hot and cold climates
13. Can be used hundreds of times
14.Guaranteed for 7 years
15.Made in China ship worldwide
Ground protection mat Connection System
Each XINXING ground protection sheet has 4 connection holes, one at each corner, and 4 additional connect holes (if customer need , the addtional holes will be prepared ). These allow panels to be connected in either direction and to be rotated at 90 degree angles as required .
Singke link:
The single link is used to join XINXING Ground Protection Mat into a roadway or path. Galvanized
Double Link
Use the double link to join XINXING Ground Protection Mat to form a platform or parking area. Galvanized.
Parameter
| Physical Properties | ASTM | Unit | Value |
| Density | D1505 | g/cm3 | 0.96 |
| Melt Index | D1238 | g/10min | 0.5 |
| Brittleness Temperature | D746 | °C | <-40 |
| Shore D Hardness | D2240 | 65 |
The properties of HDPE ground protection mat:
| Parameter table | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Why Choose Us
lMore than 15 years' professional manufacturing experience with own factory.
lVirgin 100% material produced, high quality with good surface and color make ensured
lGB/T 19001-2008 ; ISO 9001:2008 certification.
lCompetitive price, In stock, Fast delivery, and Excellent service.
lOEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
Any questions, please feel free to contact us.
